Coil-Over Strut Front 15-20 GM SUVs/Pickup Trucks (K2xx) - LWB, w/MagneRide

Product image 1
Product image 2

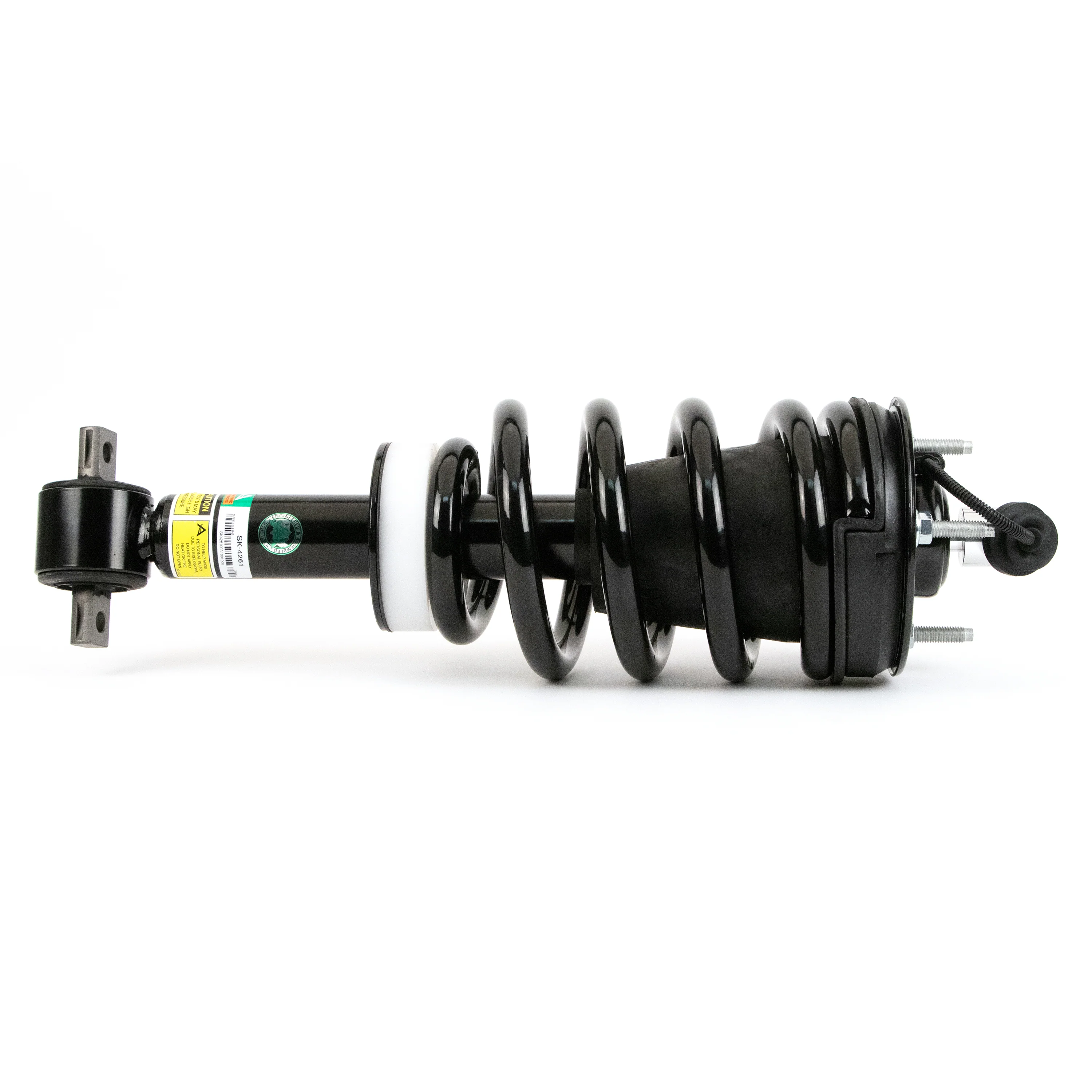

Coil-Over Strut Front 15-20 GM SUVs/Pickup Trucks (K2xx) - LWB, w/MagneRide

SK-4261

New Coil Strut Assembly

New Coil Strut Assembly

The Arnott SK-4261 coil strut assembly is designed for the front of 2014–2018 GMC Sierra and Chevrolet Silverado trucks (4WD) equipped with Z95 MagneRide. This direct replacement assembly is engineered to restore factory ride height and dependable performance. The SK-4261 also gives drivers added flexibility. In addition to fitting truck applications, it can be used to achieve a 1 inch lift on 2015–2020 GM Short Wheelbase (4WD) and Long Wheelbase (RWD/4WD) SUVs, as well as 2014–2018 Sierra and Silverado (2WD) models with MagneRide. Each unit is completely new and built from premium components, including a powder-coated coil spring and a custom-valved shock absorber. Arnott engineers validate every strut through rigorous lab testing and thousands of miles on our test fleet, ensuring performance, durability, and comfort under real-world conditions. The SK-4261 converts the factory Z95 MagneRide to Arnott custom-tuned passive valving, with an included electronics bypass solution for seamless integration. The strut fits either front position, arrives fully pre-assembled for plug-and-play installation, and includes a detailed installation manual. Designed and assembled in the USA, the SK-4261 is recommended to be replaced in pairs for the best results. It is an excellent passive solution for aging electronic or air suspension systems, restoring confidence, stability, and a smooth ride.

  • Converts factory Z95 MagneRide to Arnotts custom-tuned passive valving with included electronics bypass solution
  • Restores vehicle to original ride height
  • Fits front right or left position
  • Fully pre-assembled for Plug-N-Play installation
  • Detailed installation manual available
  • Designed and assembled in the USA
  • Replace in Pairs
Active Or Passive Suspension: Passive
Adjustable: No
Adjustable Compression: No
Adjustable Damping: No
Adjustable Rebound: No
Adjustable Ride Height: No
Air Adjustable: No
Air Bladder: No
Air Bladder Material: No
Air Ride Suspension: No
Bearing Plate Included: Yes
Bladder Heavy Duty Crimping Rings Included: No
Bladder Sleeve(s) Included: No
Bladder(s) Included: No
Body Diameter: 50.038 (mm)
Body End Measuring Point: Center Eye
Boot Color: Black
Boot Included: Yes
Coil Over Springs Included: Yes
Coil Spring Included: Yes
Compressed Length: 312.928 (mm)
Dust Shield Included: Yes
Dust Shield Material: Rubber
Extended Length: 452.12 (mm)
Gas Charged: Yes
Grade Type: Standard
Heavy Duty Crimping Rings: No
Housing Material: Steel
Internal Construction Type: Twin-tube
Internal Damper Type: Hydraulic
Lower Mount Type: Cross Pin
Lower Mounting Isolator Included: Yes
Mounting Hardware Included: Yes
New Or Remanufactured: New
Outer Housing Diameter: 50.038 (mm)
Progressive Spring Rate: No
Protective Aluminum Can: No
Shock Absorber Rod End Measuring Point: Shoulder of Stud
Shock Spring Assisted: Yes
Shock/strut Color: Black
Spring Isolators Included: Yes
Spring Rate Type: Linear
Spring Seat Included: Yes
Springs Included: Yes
Travel Length: 139.192 (mm)
Upper Mount Type: Bolt
Upper Mounting Isolator Included: Yes
Make Model Year
Cadillac Escalade 2015-2020
Cadillac Escalade ESV 2015-2020
Chevrolet Silverado 1500 2015-2018
Chevrolet Suburban 2015-2020
Chevrolet Tahoe 2015-2020
GMC Sierra 2015-2018
GMC Sierra 1500 2015-2018
GMC Yukon 2015-2020
GMC Yukon XL 2015-2020

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference Number Reference Name
23151123 General Motors
23312167 General Motors
23464589 General Motors
84061228 General Motors
84176631 General Motors
84977478 General Motors
$132.23

Original: $377.80

-65%
Coil-Over Strut Front 15-20 GM SUVs/Pickup Trucks (K2xx) - LWB, w/MagneRide—

$377.80

$132.23

Product Information

Shipping & Returns

Description

SK-4261

New Coil Strut Assembly

New Coil Strut Assembly

The Arnott SK-4261 coil strut assembly is designed for the front of 2014–2018 GMC Sierra and Chevrolet Silverado trucks (4WD) equipped with Z95 MagneRide. This direct replacement assembly is engineered to restore factory ride height and dependable performance. The SK-4261 also gives drivers added flexibility. In addition to fitting truck applications, it can be used to achieve a 1 inch lift on 2015–2020 GM Short Wheelbase (4WD) and Long Wheelbase (RWD/4WD) SUVs, as well as 2014–2018 Sierra and Silverado (2WD) models with MagneRide. Each unit is completely new and built from premium components, including a powder-coated coil spring and a custom-valved shock absorber. Arnott engineers validate every strut through rigorous lab testing and thousands of miles on our test fleet, ensuring performance, durability, and comfort under real-world conditions. The SK-4261 converts the factory Z95 MagneRide to Arnott custom-tuned passive valving, with an included electronics bypass solution for seamless integration. The strut fits either front position, arrives fully pre-assembled for plug-and-play installation, and includes a detailed installation manual. Designed and assembled in the USA, the SK-4261 is recommended to be replaced in pairs for the best results. It is an excellent passive solution for aging electronic or air suspension systems, restoring confidence, stability, and a smooth ride.

  • Converts factory Z95 MagneRide to Arnotts custom-tuned passive valving with included electronics bypass solution
  • Restores vehicle to original ride height
  • Fits front right or left position
  • Fully pre-assembled for Plug-N-Play installation
  • Detailed installation manual available
  • Designed and assembled in the USA
  • Replace in Pairs
Active Or Passive Suspension: Passive
Adjustable: No
Adjustable Compression: No
Adjustable Damping: No
Adjustable Rebound: No
Adjustable Ride Height: No
Air Adjustable: No
Air Bladder: No
Air Bladder Material: No
Air Ride Suspension: No
Bearing Plate Included: Yes
Bladder Heavy Duty Crimping Rings Included: No
Bladder Sleeve(s) Included: No
Bladder(s) Included: No
Body Diameter: 50.038 (mm)
Body End Measuring Point: Center Eye
Boot Color: Black
Boot Included: Yes
Coil Over Springs Included: Yes
Coil Spring Included: Yes
Compressed Length: 312.928 (mm)
Dust Shield Included: Yes
Dust Shield Material: Rubber
Extended Length: 452.12 (mm)
Gas Charged: Yes
Grade Type: Standard
Heavy Duty Crimping Rings: No
Housing Material: Steel
Internal Construction Type: Twin-tube
Internal Damper Type: Hydraulic
Lower Mount Type: Cross Pin
Lower Mounting Isolator Included: Yes
Mounting Hardware Included: Yes
New Or Remanufactured: New
Outer Housing Diameter: 50.038 (mm)
Progressive Spring Rate: No
Protective Aluminum Can: No
Shock Absorber Rod End Measuring Point: Shoulder of Stud
Shock Spring Assisted: Yes
Shock/strut Color: Black
Spring Isolators Included: Yes
Spring Rate Type: Linear
Spring Seat Included: Yes
Springs Included: Yes
Travel Length: 139.192 (mm)
Upper Mount Type: Bolt
Upper Mounting Isolator Included: Yes
Make Model Year
Cadillac Escalade 2015-2020
Cadillac Escalade ESV 2015-2020
Chevrolet Silverado 1500 2015-2018
Chevrolet Suburban 2015-2020
Chevrolet Tahoe 2015-2020
GMC Sierra 2015-2018
GMC Sierra 1500 2015-2018
GMC Yukon 2015-2020
GMC Yukon XL 2015-2020

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference Number Reference Name
23151123 General Motors
23312167 General Motors
23464589 General Motors
84061228 General Motors
84176631 General Motors
84977478 General Motors
