Coil-Over Strut Front Right 14-19 BMW X5 (F15) /15-19 X6 (F16) w/VDC

Product image 1
Product image 2

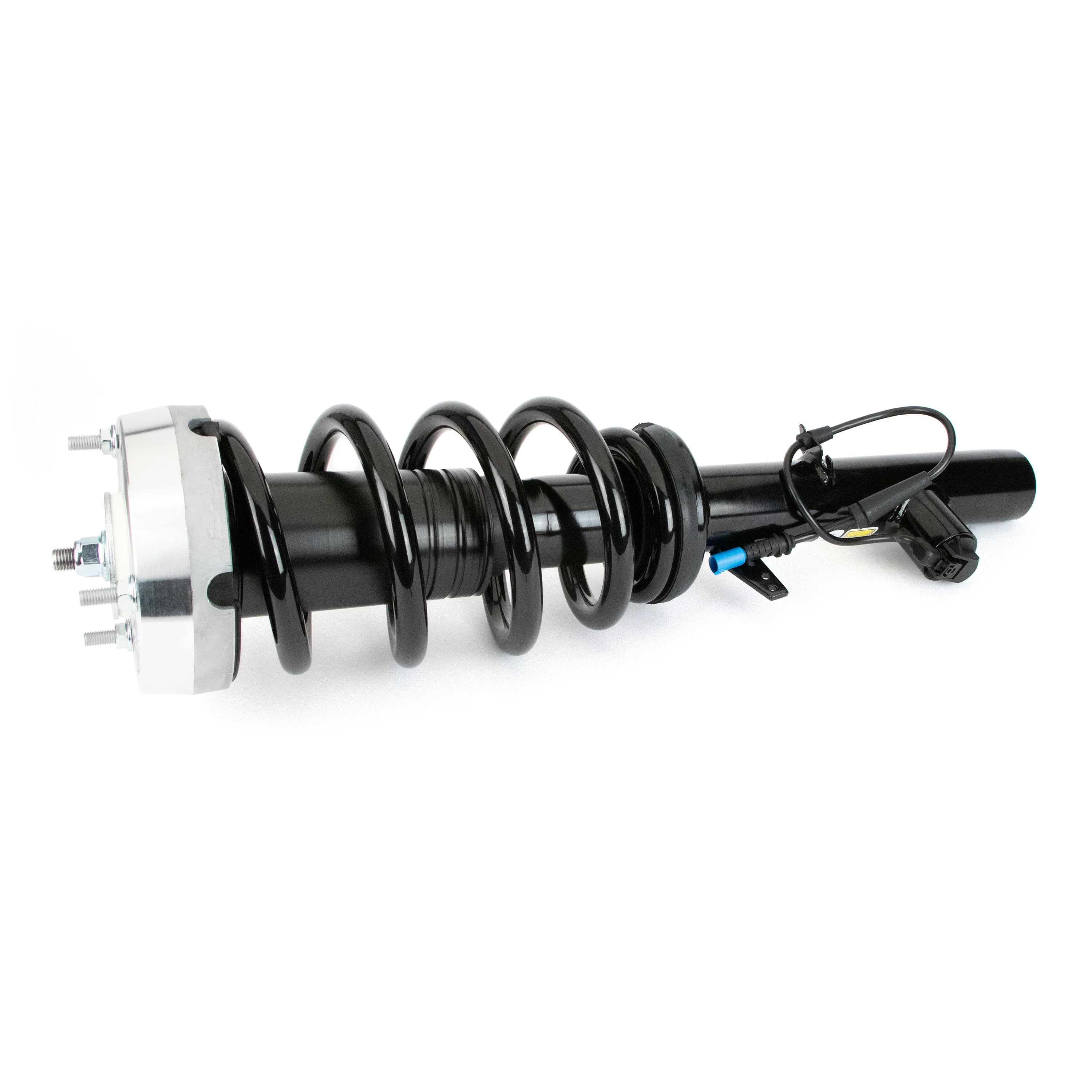

Coil-Over Strut Front Right 14-19 BMW X5 (F15) /15-19 X6 (F16) w/VDC

SK-3604

Coil Strut Assembly

Arnott’s completely new coil over struts are built using quality components including custom-valved internal shocks and new steel coils. These coil over struts are engineered and rigorously tested on dyno machines and driven countless miles on Arnott’s fleet of test cars. Arnott-designed struts are an excellent passive alternative for aging air or electronic suspension systems restoring comfort by replacing the OE shock with a completely new custom-valved coil over strut to provide a great ride.

  • Converts active to passive
  • Exclusively for 2014-2019 BMW X5 (F15/F16)/2015-2019 X6 (F15/F86) with VDC and with Electronic Suspension
  • Fits FRONT RIGHT
  • Custom-tuned damper calibrated to provide a smooth yet responsive ride
  • Provide proper vehicle ride height when additional weight is loaded
  • New spring seat, isolator and mounting hardware
  • Pre-assembled with a new steel coil spring
  • Replace in Pairs
Active Or Passive Suspension: Passive
Adjustable: No
Adjustable Compression: No
Adjustable Damping: No
Adjustable Rebound: No
Adjustable Ride Height: No
Air Adjustable: No
Air Bladder: No
Air Bladder Material: No
Air Ride Suspension: No
Bearing Plate Included: Yes
Bladder Heavy Duty Crimping Rings Included: No
Bladder Sleeve(s) Included: No
Bladder(s) Included: No
Body End Measuring Point: Center Eye
Boot Color: Black
Boot Included: Yes
Coil Over Springs Included: Yes
Coil Spring Included: Yes
Compressed Length: 447 (mm)
Dust Shield Included: Yes
Dust Shield Material: Plastic
Extended Length: 578 (mm)
Gas Charged: Yes
Grade Type: Standard
Heavy Duty Crimping Rings: No
Housing Material: Steel
Internal Construction Type: Twin-tube
Internal Damper Type: Hydraulic
Lower Mount Type: Base Cup
Lower Mounting Isolator Included: No
Mounting Hardware Included: Yes
New Or Remanufactured: New
Progressive Spring Rate: No
Protective Aluminum Can: No
Shock Absorber Rod End Measuring Point: Shoulder of Stud
Shock Spring Assisted: Yes
Shock/strut Color: Black
Spring Isolators Included: Yes
Spring Rate Type: Linear
Spring Seat Included: Yes
Springs Included: Yes
Travel Length: 131 (mm)
Upper Mount Type: Stud
Upper Mounting Isolator Included: Yes
Make Model Year
BMW X5 2014-2018
BMW X6 2015-2019

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference Number Reference Name
37106875084 BMW
37116863174 BMW
$289.50

Original: $827.15

-65%
Coil-Over Strut Front Right 14-19 BMW X5 (F15) /15-19 X6 (F16) w/VDC—

$827.15

$289.50

Product Information

Shipping & Returns

Description

SK-3604

Coil Strut Assembly

Arnott’s completely new coil over struts are built using quality components including custom-valved internal shocks and new steel coils. These coil over struts are engineered and rigorously tested on dyno machines and driven countless miles on Arnott’s fleet of test cars. Arnott-designed struts are an excellent passive alternative for aging air or electronic suspension systems restoring comfort by replacing the OE shock with a completely new custom-valved coil over strut to provide a great ride.

  • Converts active to passive
  • Exclusively for 2014-2019 BMW X5 (F15/F16)/2015-2019 X6 (F15/F86) with VDC and with Electronic Suspension
  • Fits FRONT RIGHT
  • Custom-tuned damper calibrated to provide a smooth yet responsive ride
  • Provide proper vehicle ride height when additional weight is loaded
  • New spring seat, isolator and mounting hardware
  • Pre-assembled with a new steel coil spring
  • Replace in Pairs
Active Or Passive Suspension: Passive
Adjustable: No
Adjustable Compression: No
Adjustable Damping: No
Adjustable Rebound: No
Adjustable Ride Height: No
Air Adjustable: No
Air Bladder: No
Air Bladder Material: No
Air Ride Suspension: No
Bearing Plate Included: Yes
Bladder Heavy Duty Crimping Rings Included: No
Bladder Sleeve(s) Included: No
Bladder(s) Included: No
Body End Measuring Point: Center Eye
Boot Color: Black
Boot Included: Yes
Coil Over Springs Included: Yes
Coil Spring Included: Yes
Compressed Length: 447 (mm)
Dust Shield Included: Yes
Dust Shield Material: Plastic
Extended Length: 578 (mm)
Gas Charged: Yes
Grade Type: Standard
Heavy Duty Crimping Rings: No
Housing Material: Steel
Internal Construction Type: Twin-tube
Internal Damper Type: Hydraulic
Lower Mount Type: Base Cup
Lower Mounting Isolator Included: No
Mounting Hardware Included: Yes
New Or Remanufactured: New
Progressive Spring Rate: No
Protective Aluminum Can: No
Shock Absorber Rod End Measuring Point: Shoulder of Stud
Shock Spring Assisted: Yes
Shock/strut Color: Black
Spring Isolators Included: Yes
Spring Rate Type: Linear
Spring Seat Included: Yes
Springs Included: Yes
Travel Length: 131 (mm)
Upper Mount Type: Stud
Upper Mounting Isolator Included: Yes
Make Model Year
BMW X5 2014-2018
BMW X6 2015-2019

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference Number Reference Name
37106875084 BMW
37116863174 BMW
