This is a Private Label kit built by Clutch Masters exclusively for Ringer Racing.



The Ringer Racing Billet Series uses a billet aluminum pressure plate cover combined with choice of 850 diaphragm, these diaphragms have 7-14% more clamp load and hold then the highest holding standard Ringer Racing 240mm clutch kit that uses the XR pressure plate. Making these one of the highest holding single 240mm disk street clutch kits on the market.

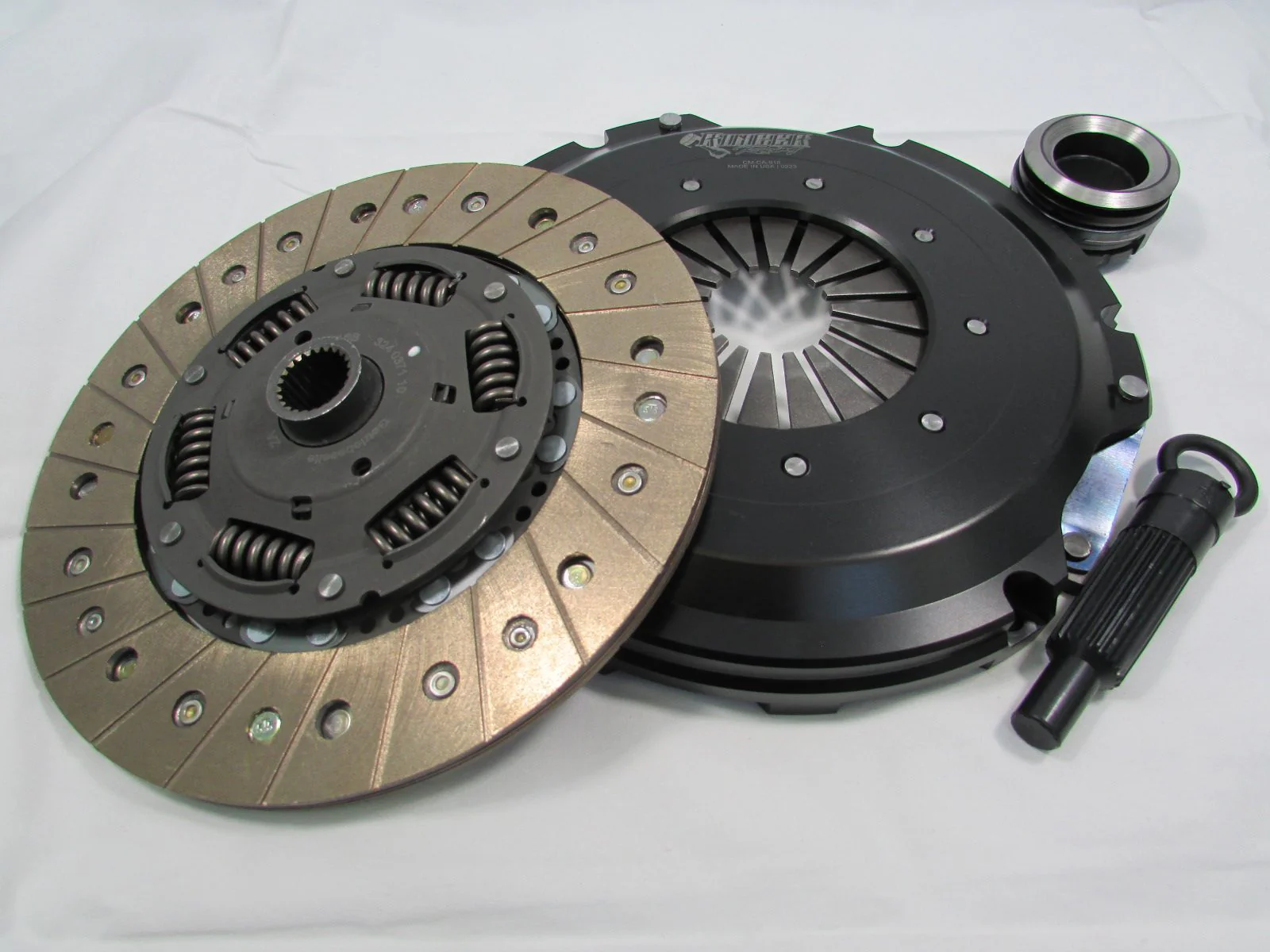

Kit includes:

• Ringer Racing 240mm Billet Series Clutch Kit
• Throw-out Bearing
• Alignment tool



Stage 3

• Street Clutch

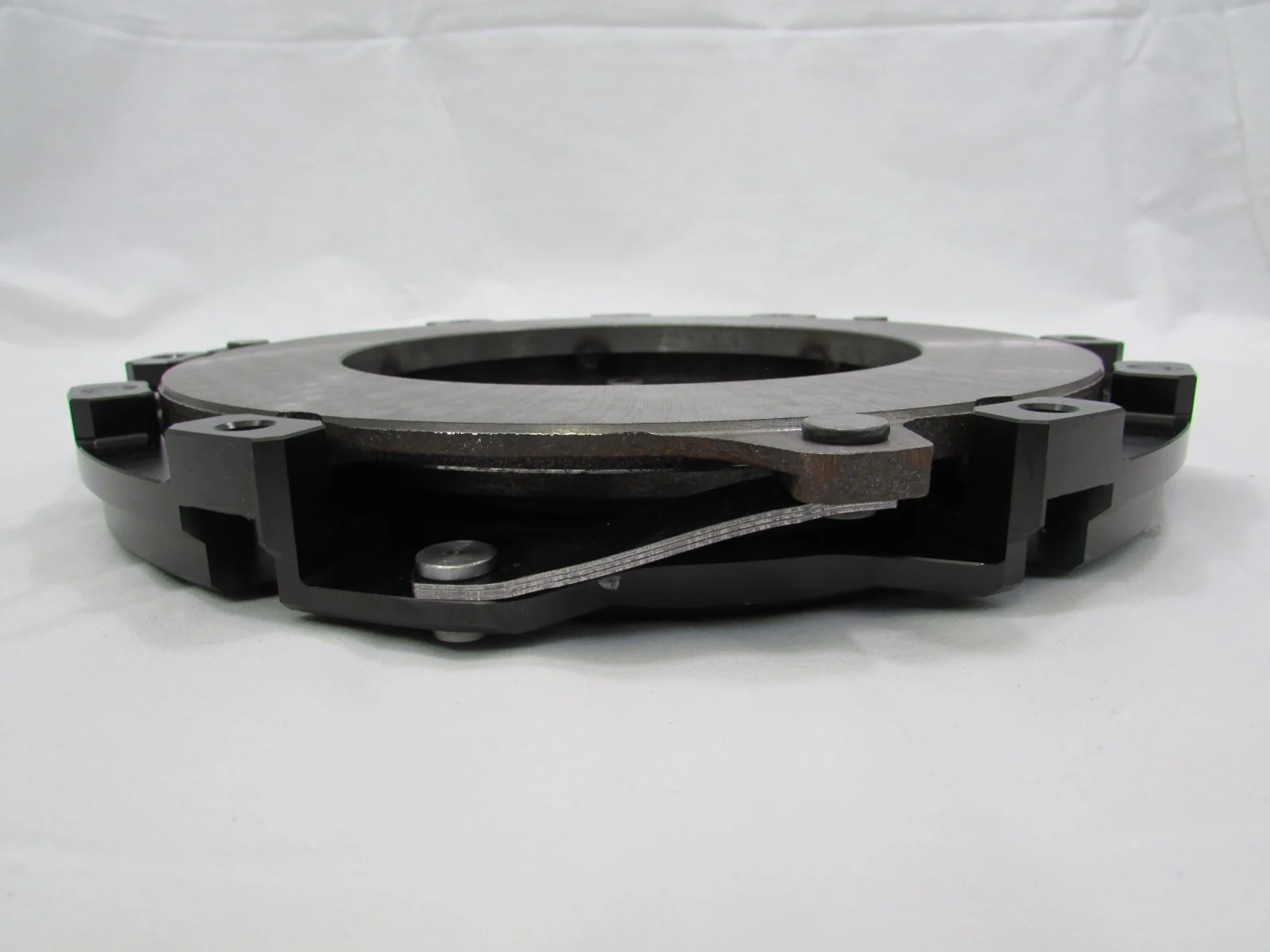

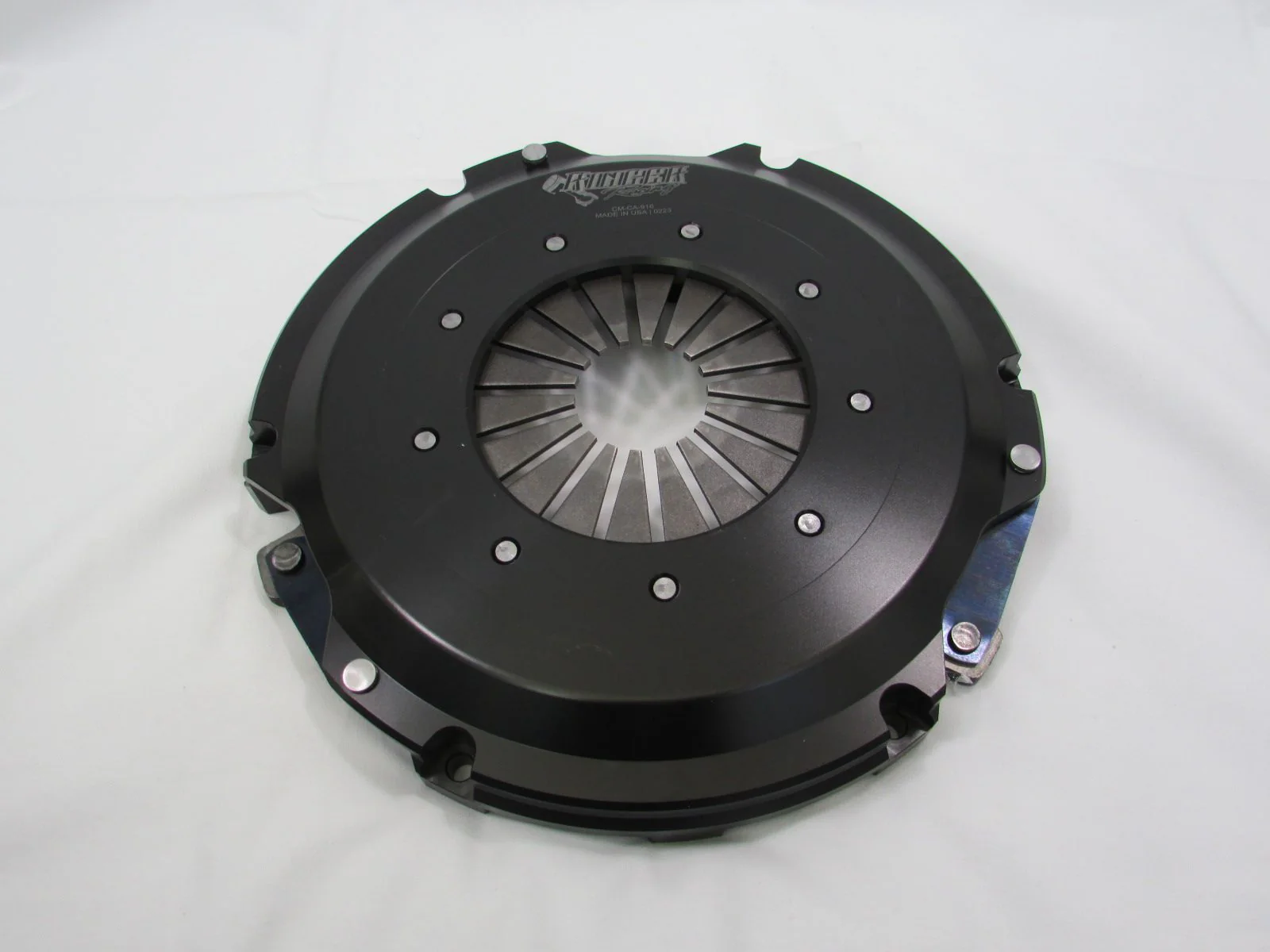

• Heavy-Duty Billet Aluminum pressure plate cover
• Hi-Leverage pressure ring design
• Ductile Iron Casting

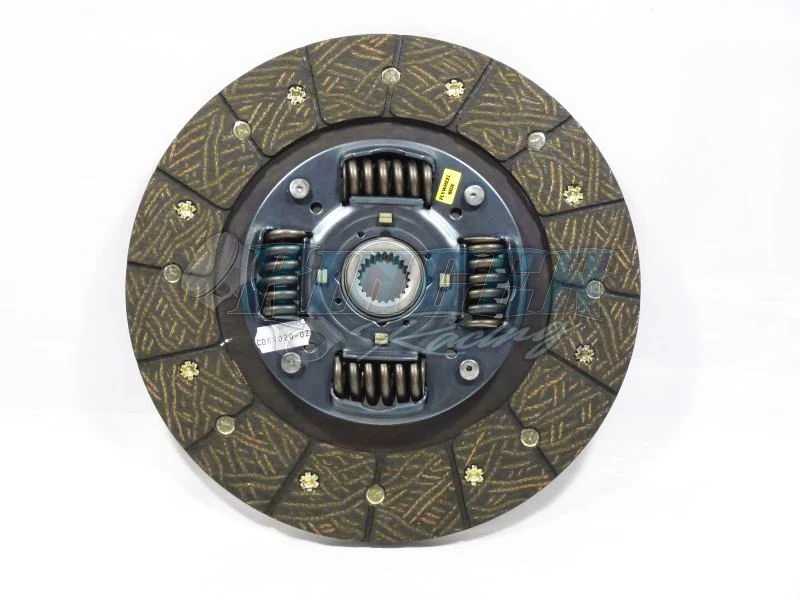

• Sprung hub/cushioned Steel backed disc
• Steel backed Organic/Cerametalic Material
• Blue Diaphragm

Stage 3+

• Street Cutch
• Heavy-Duty Billet Aluminum pressure plate cover
• Hi-Leverage pressure ring design
• Sprung hub/cushioned Steel backed disc
• Steel backed Organic/Cerametalic Material
• White Diaphragm – Increased clamp load and pedal resistance

Stage 4

• Street/Race Clutch
• Heavy-Duty Billet Aluminum pressure plate cover
• Hi-Leverage pressure ring design
• Sprung hub/cushioned Steel backed disc
• Full Face Cerametalic Material on both sides
• Blue Diaphragm

Stage 4+

• Street/Race Clutch
• Heavy-Duty Billet Aluminum pressure plate cover
• Hi-Leverage pressure ring design
• Sprung hub/cushioned Steel backed disc
• Full Face Cerametalic Material on both sides
• White Diaphragm – Increased clamp load and pedal resistance





Torque Rating at the Flywheel

• Stage 3 – 650 ft lbs
• Stage 3+ – 700 ft lbs
• Stage 4 – 950 ft lbs
• Stage 4+ – 1000 ft lbs



• Pressure plate bolts = 25 ft lbs
• Dab of loctite on all bolts
