VW5669-787

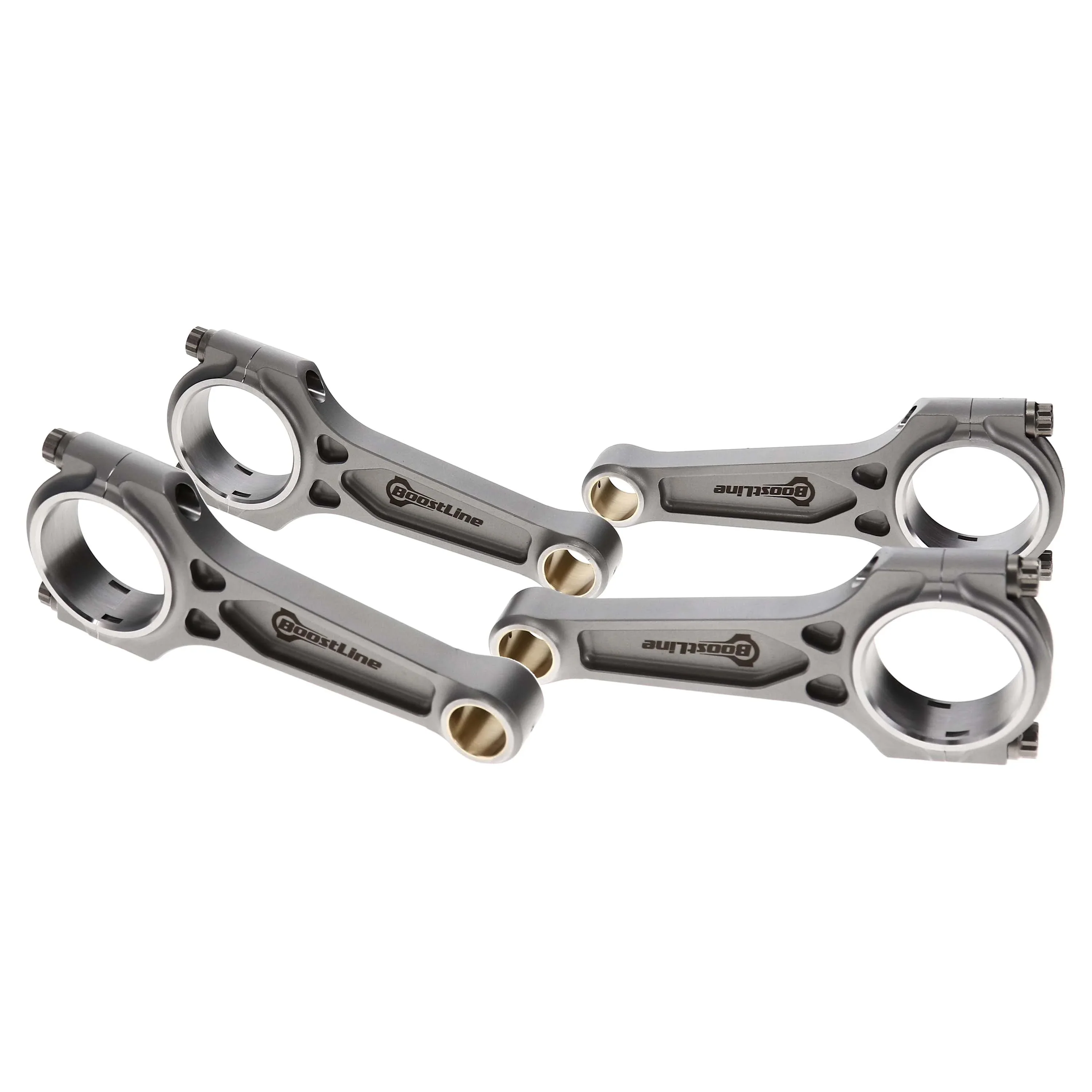

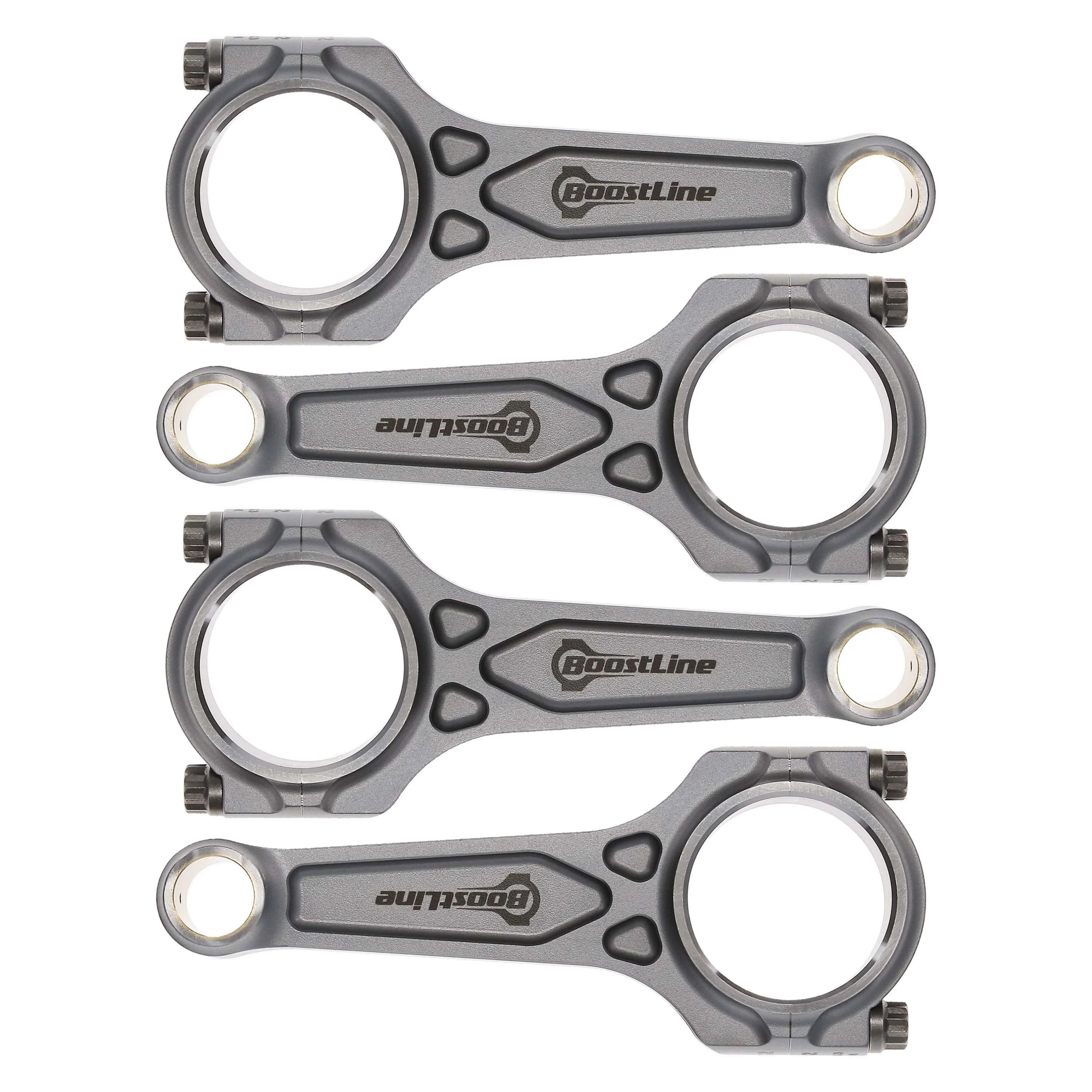

BoostLine Volkswagen 1.8T 20V 20mm Pin Connecting Rod Set, 144.00 mm Length, 20.00 mm Pin, 47.80 mm Journal, 3/8 in. ARP 2000 Bolts, 4340 Steel, Patented Three-Pocket Design, Set of 4

BoostLine connecting rods are designed and built for the stressful demands of high-powered, forced induction and nitrous engines. Whether you’re building a boosted K-series, a track-ready Volkswagen, or a sneaky SRT4, BoostLine connecting rods have been proven in import and domestic four-cylinder engines confidently pushing 1,000HP+. BoostLine rods are forged from premium 4340 steel and utilize a patented, three-pocket design, maximizing strength while minimizing rotating weight. This revolutionary design dramatically improves each rods’ big-end stability under tensile loads and provides a 60% improvement in bending strength and 20% stress reduction in tension compared to H-beam designs, benefits crucial to durability in four-digit-horsepower engines. Each rod is equipped standard with industry leading ARP hardware and is subject to a 26-point, CMM inspection with all critical dimensions provided via an inspection card included with every set of rods. BoostLine connecting rods are the complete package for every performance build, from powerful projects to all-out race cars.

Purpose-Built For Boost High Boost and Nitrous VW 1.8T Applications
Forged From Ultra-Strong 4340 Steel
Patented Three-Pocket Design
Capable of 1000+ HP
3/8 x 1.600 in. ARP 2000 Fasteners
High Quality APMCO Bronze Pin Bushing
26 Point Detailed CMM Inspection Report Included

Rod Type	I-Beam
Material	Forged 4340 Steel
Center To Center Length	144.00 MM
Average Gram Weight	636 GR
Journal Size	47.80 MM
Main Bearing Bore Diameter	50.610 MM
Big End Width	24.94 MM
Wrist Pin Journal Bushing Width	24.94 MM
Bolt Part Number	BT61501-S
